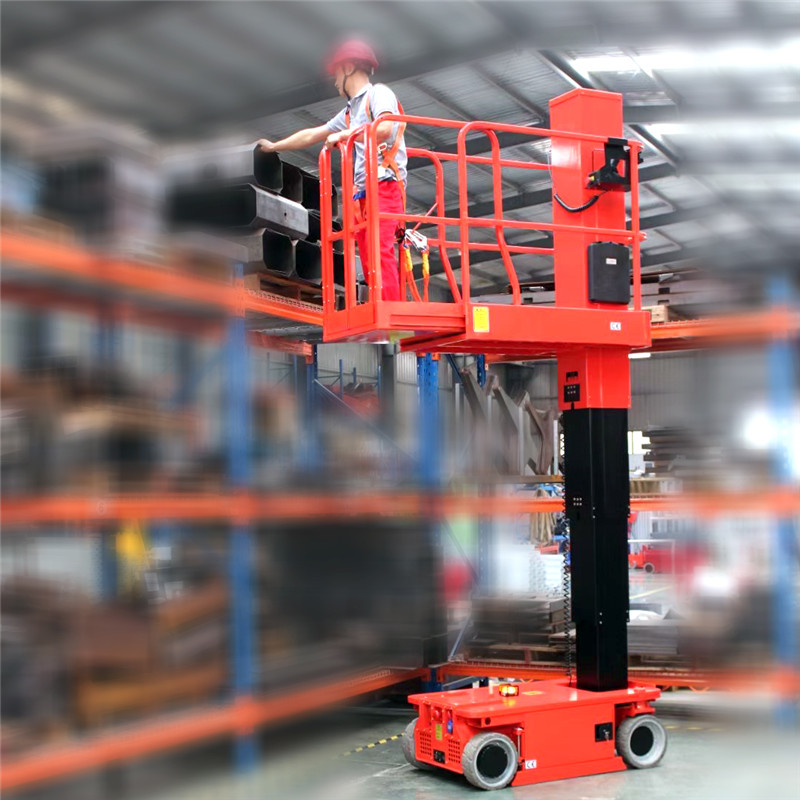

Telescopic vertical lift

Home » Products » Mobile Man Lift » Telescopic vertical lift

Product Highlights

Electric lifting push rod replaces traditional hydraulic cylinder, “oil-free” makes energy saving and environmental protection
Equipped with brush less DC motor, the whole machine is maintenance-free
No noise, zero emission, no pollution, energy saving and environmental protection
Light structure, flexible movement

Description

Standard Features

Description

Standard Features

Standard Devices

Model	AMWP3.6-6100	AMWP4.8-6100	AMWP6-6100
Max. Working Height – D	5.6m	6.8m	8m
Max. Platform Height	3.6m	4.8m	6m
Loading Capacity	227kg	227kg	159kg
Ext. Platform Capacity	114kg	114kg	114kg
Overall Length – A	1.36m	1.36m	1.36m
Overall Width – B	0.76m	0.76m	0.82m
Overall Height – C	1.7m	1.98m	1.98m
Platform Dimension (Extended)	1.8m×0.70m	1.8m×0.70m	1.8m×0.70m
Ext. Platform Length	0.51m	0.51m	0.51m
Wheel Base	1.04m	1.04m	1.04m
Inner Turning Radius	0m	0m	0m
Outer Turning Radius	1.4m	1.4m	1.4m
Travel Speed(Stowed)	4km/h	4km/h	4km/h
Travel Speed(Raised)	1.1km/h	1.1km/h	1.1km/h
Up/Down Speed	31/32sec	41.5/42sec	52/53sec
Gradeability	25%	25%	25%
Drive Tyres	Φ305×100mm	Φ305×100mm	Φ305×100mm
Drive Motors	2×12VDC/0.5kW	2×12VDC/0.5kW	2×12VDC/0.5kW
Lifting Motor	24VDC/1.3kW	24VDC/1.3kW	24VDC/1.3kW
Battery	2×12V/100Ah	2×12V/100Ah	2×12V/100Ah
Charger	24V/15A	24V/15A	24V/15A
Weight	810kg	980kg	1060
